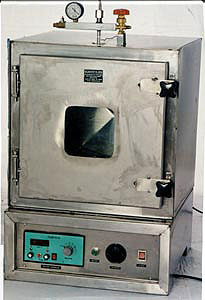

Construction :-
The unit is
scientifically designed to provide excellent vacuum &
temperature performance. The unit has a double walled
construction. The inner chamber is made up of heavy
gauge Stainless Steel, argon welded & mirror polished.
The outer body is made up of MS; with powder coated
finish in two tone colour (outer S.S. chamber can be
provided on request). The main door is provided with a
toughened glass in the center, for easy viewing of the
contents of the inner chamber.
Features :-
-
High reliability and low
leakage rate.
-
0 to 30 / 0 to 760 mm of
Hg. Vacuum.
-
Vacuum gauge and cock
provided.
-
3-Ht. switch / Energy
regulator for precise control.
-
Thermostat / Digital /
Microprocessor based control system with PT-100
sensor.
-
Long lasting moulded
silicon gasket on door to provide perfect sealing of
the inner chamber.
-
Purging facility for
Nitrogen gas through inlet/outlet copper tubing
-
Vacuum pump excluded.
-
Temp. Range: Ambient +5ēC
to 250ēC.
|
