Construction :-

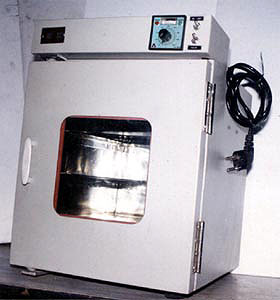

The unit has a
triple walled construction. The inner chamber is made up
of CRCA thick mild steel. The outer body is made up of
MS, with a powder coated finish.
Temperature Range: Ambient to 400ºC with an accuracy of
±3ºC.
Control System :-
A Digital temperature microprocessor based PID
controller cum indicator with PT-100 sensor controls the
heating process. Forced air circulation is effected by a
flange mounted, belt driven motor for uniformity of
inner chamber temperature. 4” glasswool insulation is
provided in between the walls to have skin temp. of the
machine below 40ºC. An Enconal Finned Heater (Hot + Cold
zone type junction) with leads taken out of the back of
oven with cover for easy accessibility is used as the
heating element. The door is fitted with asbestos /
Teflon mix square gasket with hinges and special lock
arrangement to provide perfect sealing of inner chamber
(to avoid heat / power loss). |
|
Optional :-
On demand
Software based Microprocessor programmable PID
controller with Time proportionate bands, data logger &
cyclic timer, real clock battery backup, RAM memory,
printer & PC interface controller with PT-100 sensor can
be provided with the unit at Extra cost. Our technology
is fully controlled, easy to handle, user friendly,
intelligent and reliable. |
