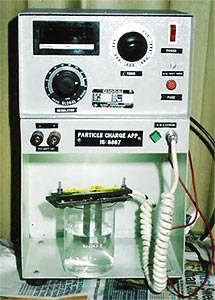

Particle charge apparatus
As per IS 888, Anex : 'E":
Use :-
For measuring the cationic or anionic nature of the
bituminous products.
Description :-
Unit consists of battery, rheostat, milliammeter, 2 - SS
electrode plates, glass container, illumination for the
chamber, timer device (all provided in required /
specified dimensions and parameters). Mains / battery
operated.
The instrument is well illuminated with fluorescent lamp
for better view of sample & deposition on SS plate. It
operates on 12v supply either on mains / battery through
ON / OFF switch. Digital power supply gives current
greater than 4mA.A mechanical timer of 30Minutes Rating
helps to set Time duration of deposit. ONE SPECIAL
DIGITAL LED TO JUDGE ANIONIC / CATIONIC WITH OUT
CLEANING / OBSERVATION OF SS PLATES provided
|
