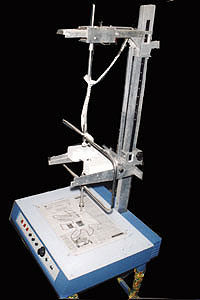

Styroformer :-
The accurate, easier, fast &profession's choice for
cutting Therapeutic shielding forms like writing with
fine pen. The styroformer offers the best cost benefit
ratio of any available block cutter in the market.
Styroformer machine includes verification light, three
tracing tips & self locating block holding arms. Basic
machine plus hot wire temperature booster & alarm
system. The accessories of the cancer treatment
radiation process are cold plate, Alloy melter, U.V.
source, lead shield trolley. The unique apparatus is
basically designed & developed for exposing only those
specific area of human body for giving chemotherapy of
the human body there by un affected portion is shielded
from the hazardous chemotherapic radiation. Thus it is
more precise & perfect .The m/c is user friendly & very
easy to operate. The unique styroform cutter is
indigenously made & constant improvement in its end use
makes it more suitable & economical for treatment of
cancer effected area. It basically works on the
principle of penetrograph m/c where after initial
alignment of the m/c the x-ray film of the affected area
is kept on a well fluorescent illuminated table. A
pointer with a hot 75 mm Nicrom wire is used for
cutting, after cutting the cut area can be verified
easily for area radiation by verification light of high
powered reflected halogen lamp. Where the shadow of the
cutting edge matches with that of edge of x-ray film
already marked. Various accessories along with Styrofoam
cutter like u.v source for illumination of cancerous
body for focusing x-ray camera & fluorescent marker pen
for marking human body cancerous cell helps in locating
defined areas. Low melter alloy consists of perfect % of
tin / lead / bismuth / mn / mg etc: cooling plate with
silicon matt etc. provides adequate support along with
Styrofoam cutter for better treatment of cancer, in
oncology department.
|
